| Business Type | Manufacturer, Supplier |
| Model Number | RF06 |
| Controller / Control Axis | PC-Base Software (X-Y-Z-H-V-R) |
| Vertical Spindle Power | 1.5 Kw |
| Click to view more | |
Product Details
Vertical Spindle Max Speed
60,000 RPM
Horizontal Spindle Max Speed
9,000 RPM
Working Area (X/Y/Z/H/V/R)
300mm / 360 DEG / 100 Mm / 360 DEG. / 360 DEG. / +45-45 DEG.
Max. Control Torque (X/Y/Z/H/V/R/T)
400 W / 400 W
Resolution (X/Y/Z)
0.03 Mm
Tools Setting System
Manual
Dimensions (L/W/H)
37 X 45 X 68 Inches
Weight
820 KGS

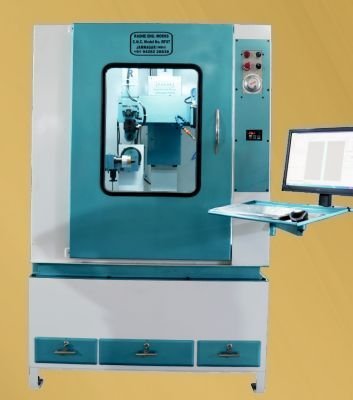

We offer the RF06 6 Axis CNC Bangle Cutting Machine, equipped with PC-Base Software for precise control over X-Y-Z-H-V-R axes. With a powerful 1.5 Kw vertical spindle and high speeds of 60 and 9 for vertical and horizontal spindles respectively, this machine ensures efficient cutting. The working area of 300mm / 360 DEG / 100 Mm / 360 DEG. / 360 DEG. / +45-45 DEG. allows for versatile operations. Max. Control Torque of 400 W / 400 W and a resolution of 0.03 Mm guarantee accuracy. Manual tools setting system and compact dimensions of 37 X 45 X 68 Inches make it ideal for manufacturers and suppliers.
